Automatic Wire Stripper 0.5 mm2 to 16.0 mm2 N34580
Automatic Wire Stripper 0.5 mm2 to 16.0 mm2 N34580

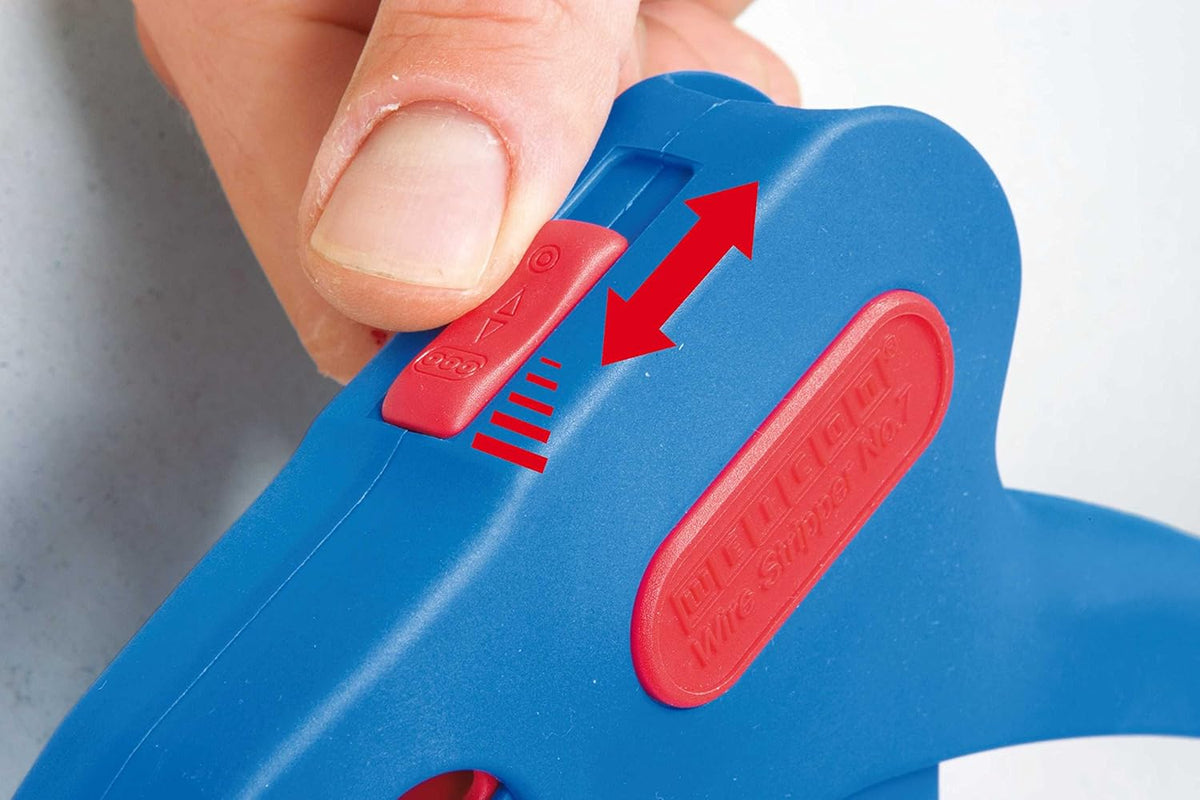

ADJUSTABLE FINE SETTING - The scanning system of the automatic stripping pliers enables fast and precise stripping of flexible (0.5 - 16 mm2) and solid (0.5 - 10 mm2) round cables without damaging the inner conductors thanks to a multi-adjustable fine setting.

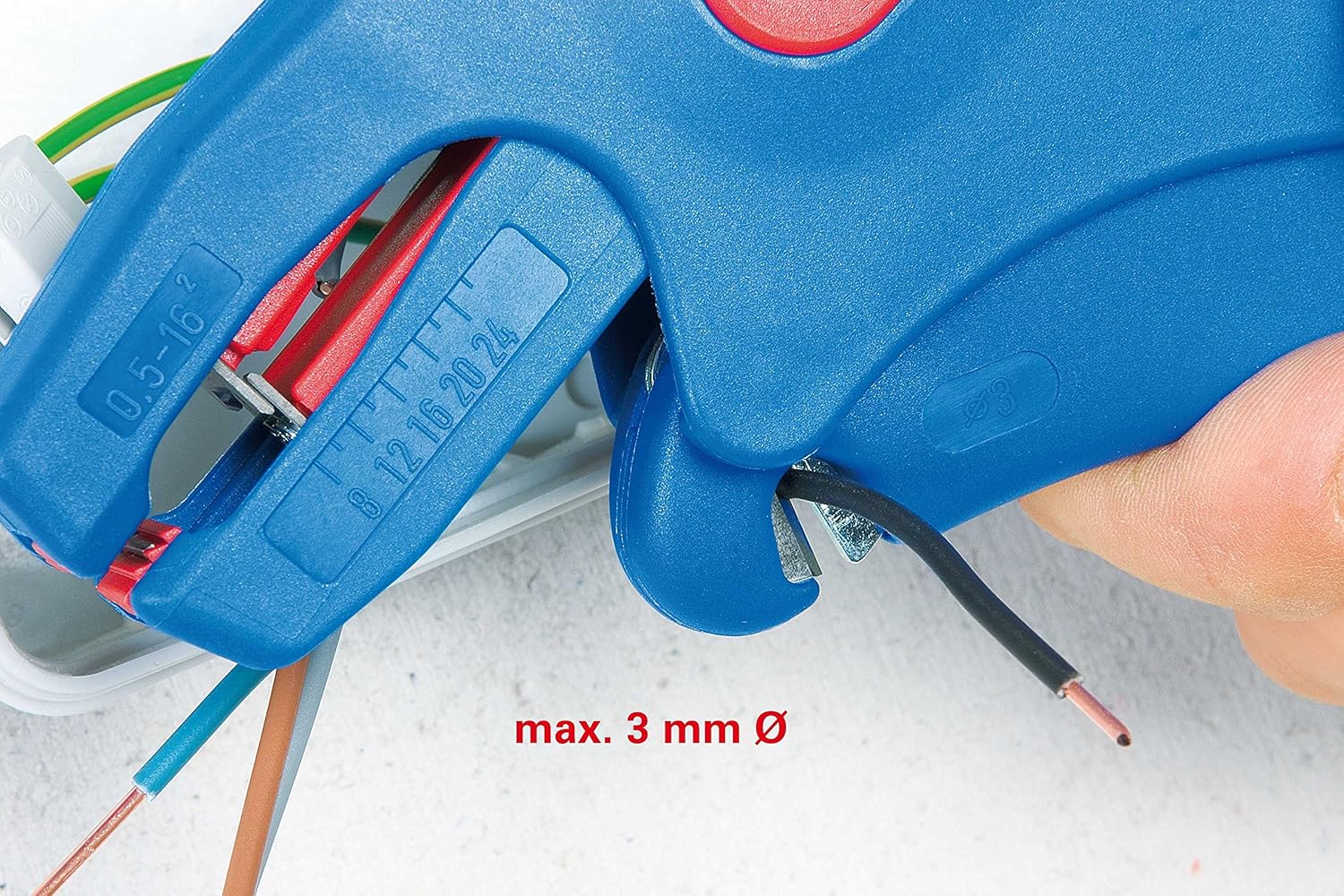

STRIPPING TOOL - An easily accessible, integrated side cutter can be used for cables (Cu/Al) up to 3 mm ?. An optical length gauge allows accurate working from 8 - 24 mm.
APPLICATION - Both in the trade and in industry or for private use, the stripping tool is used and can be individually adjusted to the needs of the user.
INDIVIDUAL USE - Functions as a stripper power cable / wire stripper / cable pliers / stripping pliers / side cutter tool / wire stripper in craft / industry / household / as an electrician tool.
WEICON - 100 % German Quality - The automatic wire stripper is completely manufactured in Germany. The pliers are T��V tested in terms of work safety. The blades are made of high quality knife steel from Solingen - a durable, first-class tool.

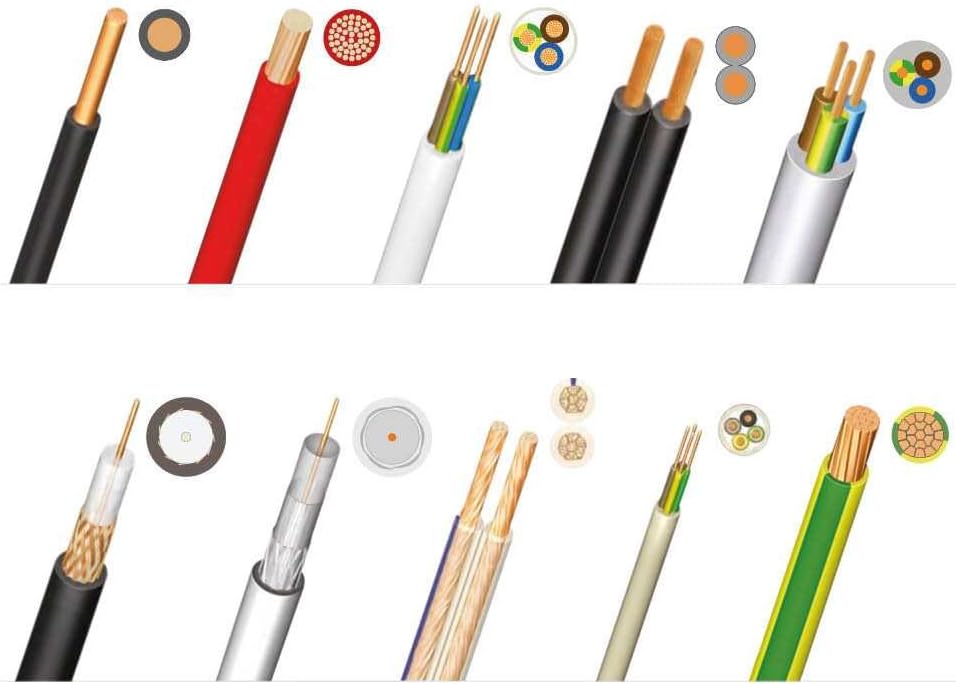

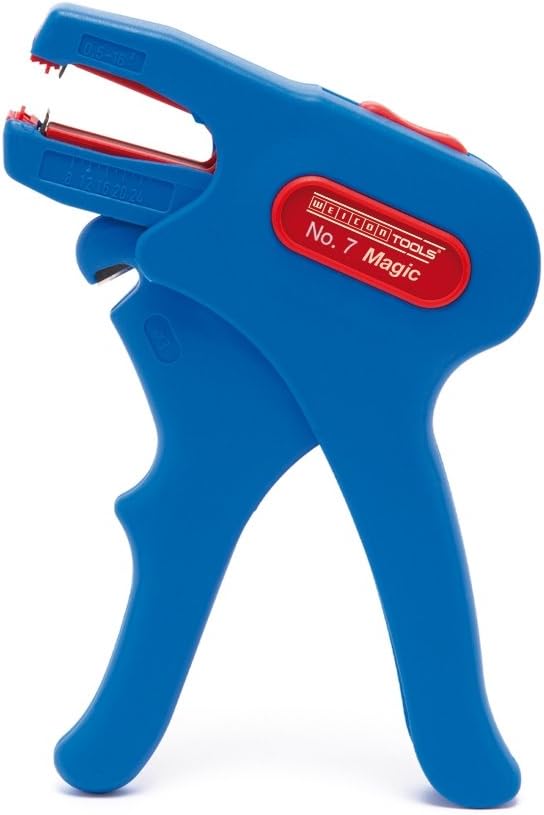

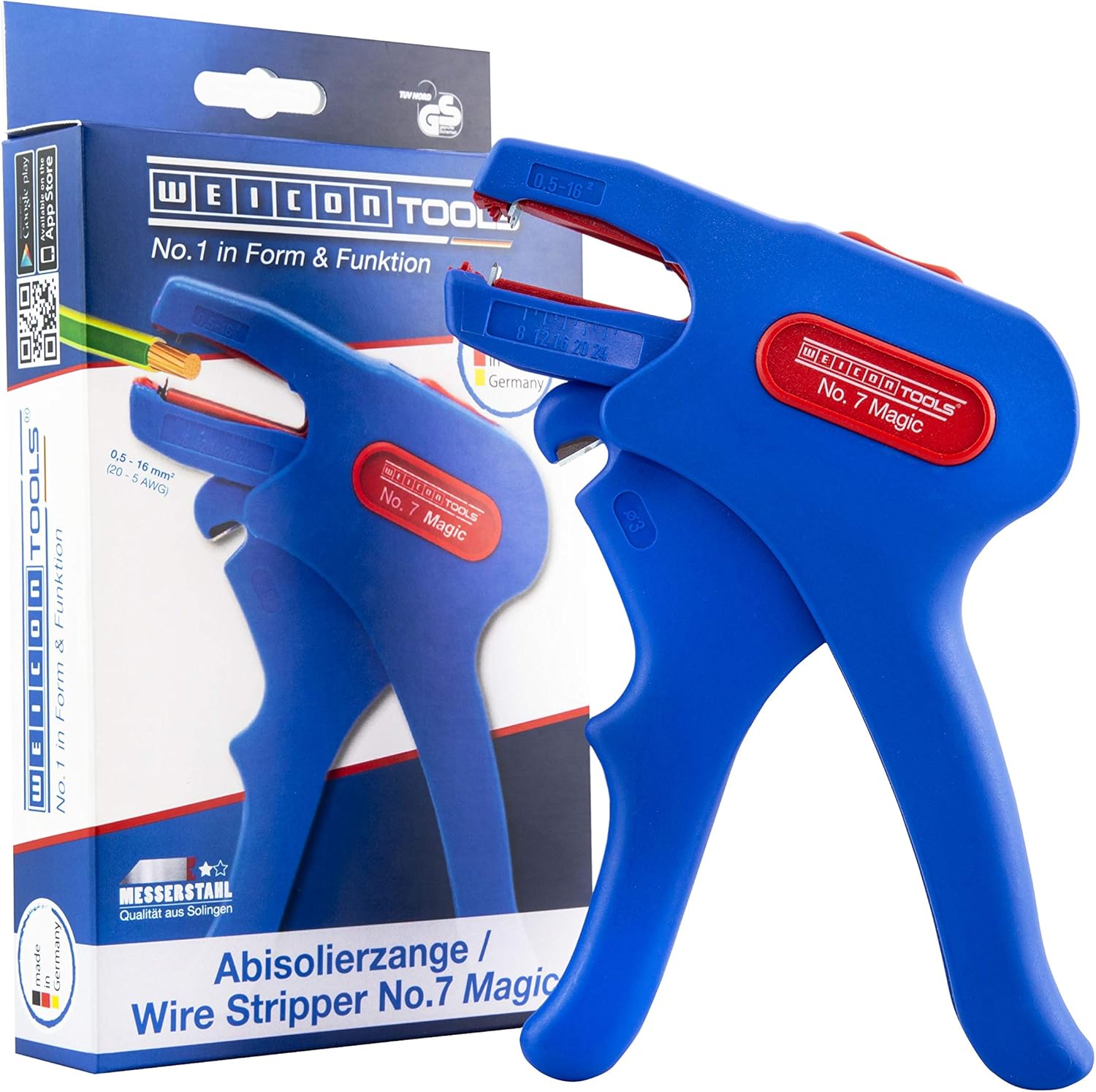

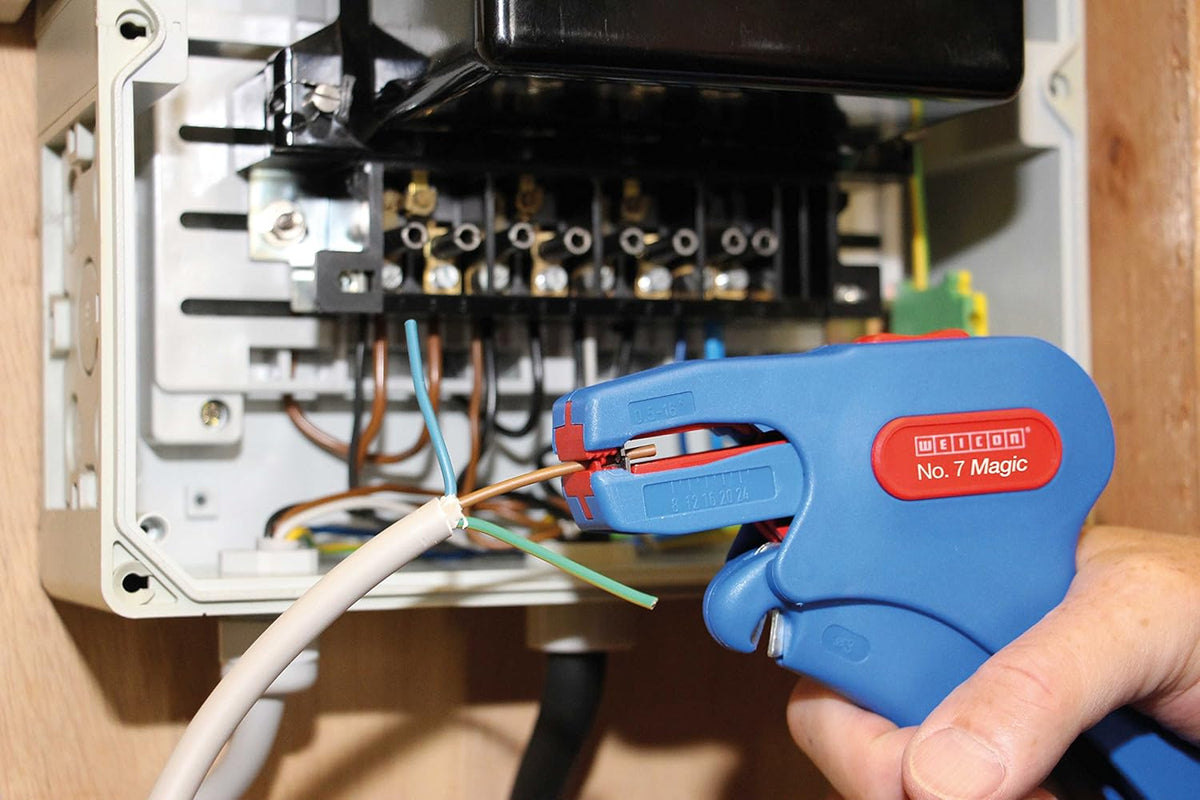

WEICON No. 7 Magic - Wire Stripper AREA OF APPLICATION: The WEICON Wire Stripper No.7 Magic is an all-round tool for stripping and stripping many different types of cables in domestic installations, such as NYM cables (3 x 1.5 mm2), rubber cables, coaxial cables, speaker cables, as well as for all common flexible and solid conductors (flexible 0.5 - 16 mm2, solid 0.5 - 10 mm2). PRECISION: The pliers have a multiple adjustable fine adjustment, which automatically adjusts to the respective conductor cross-section. This enables fast and precise stripping and prevents damage to the inner conductors. ADDITIONAL FUNCTION: The fine adjustment allows the stripping of many different cable types. An easily accessible side cutter is integrated into the tool, which can be used up to a cable diameter of 3 mm. ERGONOMICS: The stripping machine is particularly characterized by its ease of operation and smooth mechanism. The low weight of the No.7 Magic ensures fatigue-free working. QUALITY: The stripping tool is completely manufactured in Germany and made of robust and glass fibre reinforced polyamide. The long-lasting blades are made of high-quality knife steel from Solingen. SAFETY: This high-quality stripping pliers is T��V-tested, bears the GS seal for tested safety and was developed with safety at work and user-friendliness in mind. Technical Specifications Cable type: fine-stranded and solid conductors with PVC insulation Application range: 0.5 - 16.0 mm2. Inner knife: changeable Added value: integrated side cutter up to 3 mm ? Approval/Certificate: Tested safety T��V NORD Material: glass fibre reinforced polyamide Length: 190 mm Weight: 217 g
| No. 5 | No. 6 | No. 7 Magic | B004Z0MXYC | No. 7 Solar | |
|---|---|---|---|---|---|
| Working range | 0.2 - 6.0 mm2 | 0.2 - 6.0 mm2 | 0.5 - 16.0 mm2 | 0.75 - 4.0 mm2 | 1.5 - 6.0 mm2 |
| Side cutter | up to 2.0 mm ? | - | up to 3.0 mm ? | up to 3.0 mm ? | up to 3.0 mm ? |
| Length stop | optical length scale | optical length scale | optical length scale | ||
| Additional function | - | permitted up to 1,000 volts | 2 in 1: stripping and skinning | 2 in 1: stripping and skinning of flat cables | 2 in 1: stripping and skinning of solar cables |
| Locking mechanism | - | - | - | ||
| Size | 165 mm | 165 mm | 185 mm | 185 mm | 185 mm |
| Wight | 107 g | 105 g | 217 g | 220 g | 218 g |
| Replaceable blades |
